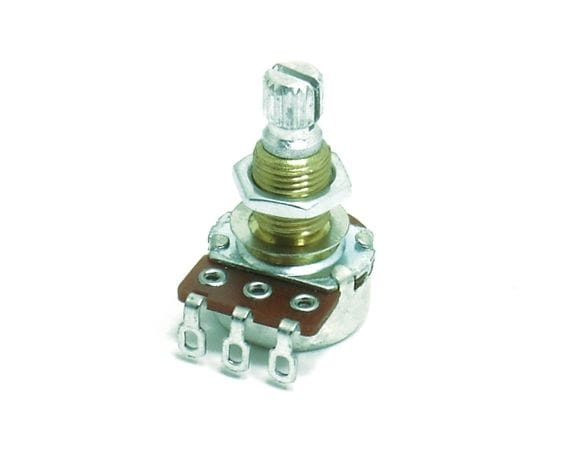

All Parts Alpha Mini 500k Linear Taper Pot

All Parts Alpha Mini 500k Linear Taper Pot

APLTP500

500K Mini Linear Taper, Split Shaft With Nut, Lock & Dress Washer. Metric thread: M8 x .75; 7.8mm diameter brass threaded collar (import size, smaller than USA spec versions). 18 spline aluminium split shaft (coarse). Dimensions - 6mm diameter split shaft. The threaded portion on the shaft is 9.5mm long. Total length of the shaft to the top of the spline is 18mm. Linear Taper Pots are generally used in Tone Positions, but can be used for either Tone or Volume depending on preference.
500K pots are standard controls for humbuckers, and 250Ks are usually used for single-coil pickups. A 250K gives a slightly warmer tone than a 500K, and bleeds off some of the high frequencies to ground.

$9.85 AUD

Low stock: 10 left
  • Every kit checked before it ships
  • 30-day Rock Solid Guarantee
  • Shipping worldwide since 2012

All Parts Alpha Mini 500k Linear Taper Pot

- The brass threaded collar is 9.5mm long. - Total length of the shaft to the top of the spline is 18mm. - Split shaft diameter : 6mm. - Pot casing diameter : 16mm. - Metric thread: M8 x .75 - 7.8mm diameter brass threaded collar (import size, smaller than USA spec versions). - 18 spline aluminium split shaft (coarse). - Includes 1 x nut, 1 x dress washer.
