Entwistle HV58-Plus-ZB-B - Humbucker Pickup (Alnico) - Bridge

Entwistle HV58-Plus-ZB-B - Humbucker Pickup (Alnico) - Bridge

ENHV58PlusZBB

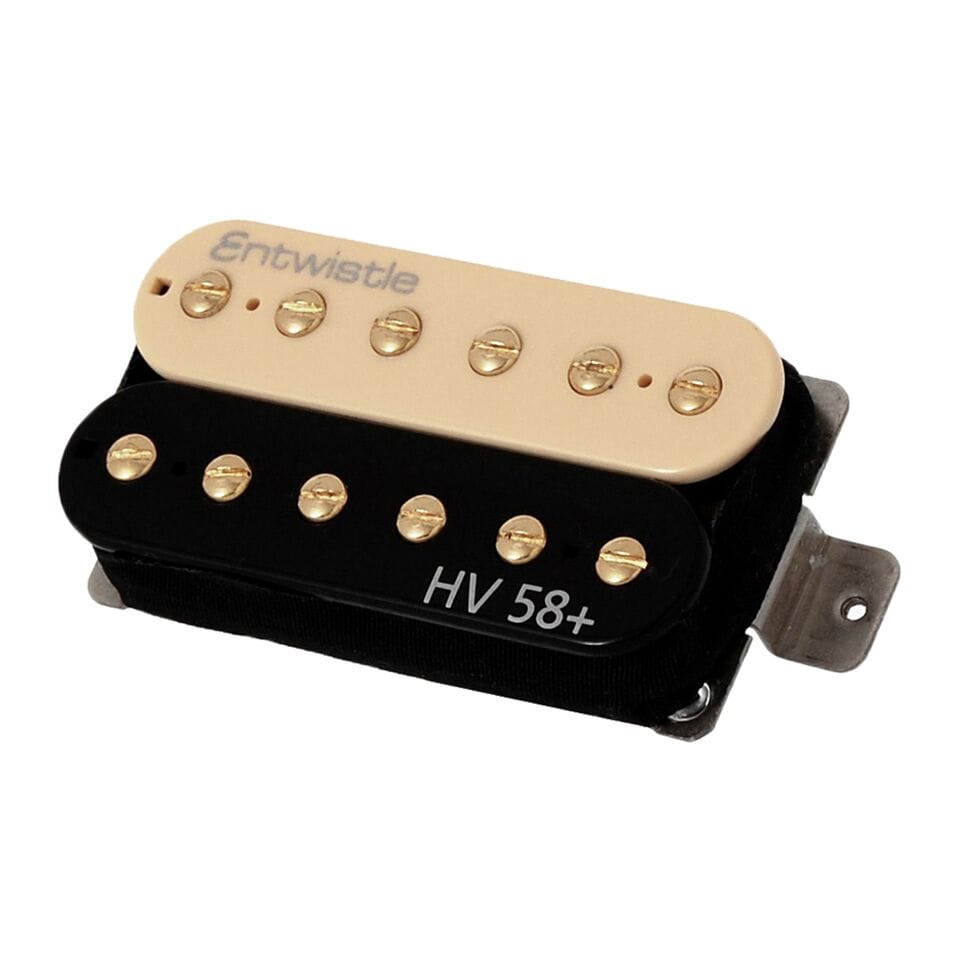

(Note: Picture features the HV 58 Plus with Gold poles. This version has Nickel poles) The classic late '50s humbucker, made to original vintage specs. Enamel coated winding wire, scatterwound coils and Alnico 2 magnetics. We use an Alnico 2 bar as it provides a more diffused secondary field and behaves as if the magnet is 50 years old. Unlike modern pickups our HV58s are not vacuum processed as this reduces the natural gaps in the windings and it is theses gaps that are at the very source of the vintage sound Covered versions of the HV58 are potted in hot wax for around 60 seconds and have a slightly different tone to the open frame HV58s which are not 'potted' at all as they are designed to replicate the earliest PAF's and are fine if you use them with a classic amp (AC30, Fender® Twin, Marshall 50 etc) but will have a tendency to squeal when used with modern high gain amps.
FREE Shipping in Australia!
$76.95 AUD

Out of stock
  • Every kit checked before it ships
  • 30-day Rock Solid Guarantee
  • Shipping worldwide since 2012

Entwistle HV58-Plus-ZB-B - Humbucker Pickup (Alnico) - Bridge

  • Pole Spacing (1st to 6th centres) - 52.5mm
  • DCR (DC Resistance) Manufacturers Spec. - 12.5 K Ohms
  • Magnetics - Alnico
  • Potting - Wax Potted
Size and dimensions: Humbucker Drawing
